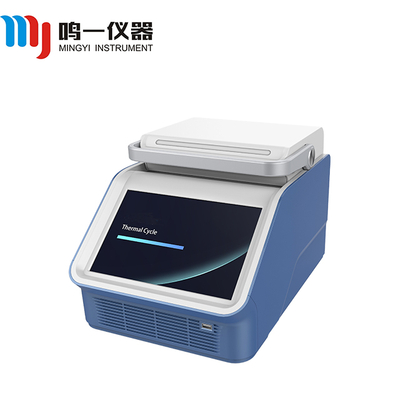

RePure series thermal cycler

RePure series thermal cycler has Android operation system and 10.1 inch capacitive touch screen. Operation is very smooth and simple. Air channel is in front and back and it allows machine placed side by side.
Quantity:

Product Description

RePure series thermal cycler has Android operation system and 10.1 inch capacitive touch screen. Operation is very smooth and simple. Air channel is in front and back and it allows machine placed side by side. Self-adapting pressure hot lid makes closing lid and tightening lid in one step. It has long service life peltier heating units and max. ramping rate is 8℃/S and cycle times is more than 1000,000. Wifi unit is built in and user can control many units of PCR through mobile App.


Feature

1. Long service life Peltier heating units.

2. Reinforced aluminum module with anodizing technology can keep rapid heating-conducting property and have enough corrosion resistance.

3. High heating and cooling rate, max. Ramping rate 8 ℃/s, can save your precious time.

4. Self-adapting pressure hot lid makes closing lid and tightening lid in one step.

5. Air channel is in front and back and it allows machine placed side by side.

6.It has Android operation system and 10.1 inch capacitive touch screen. It has graphical menu navigation interface and operation is very simple.

7. Built-in 11 standard program file template, can quickly edit the required files.

8. The running program and left time can be displayed in real time , allow to edit file when program is running.

9. One-click quick incubation function can meet experiment’s needs such as denaturation, enzyme cutting/enzyme-link and ELISA.

10. Hot lid temperature and hot lid work mode can be set to meet different experiment’s need.

11. Automatic restart after power failure. When power is restored it can continue to run unfinished program.

12. Support USB to store and copy PCR data, user can control PCR by USB mouse.

13. Update software by USB and LAN.

14. WIFI module built-in, one unit can control multiple PCR machine through computer or cell phone with internet connection.

15. Email notification after experiment is over.

Specification

Model No.

RePure-A(F)

RePure-A

RePure-B

RePure-C

Capacity

96×0.2ml

96×0.2ml

6×16×0.2ml

96×0.2ml

Tube

0.2ml tube, 8 strips,

Full 96 wells plate,

Half skirt96 wells plate,

No skirt 96 wells plate

0.2ml tube, 8 strips,

Half skirt96 wells plate,

No skirt 96 wells plate

0.2ml tube, 8 strips,

Half skirt96 wells plate,

No skirt 96 wells plate

Temperature Range

0-105℃

MAX. Ramp Rate

5℃/s

6℃/s

8℃/s

Uniformity

≤±0.2℃

Accuracy

≤±0.1℃

Display Resolution

0.1℃

Temperature Control

Block\Tube



Ramping Rate Adjustable

0.1-5℃

0.1-6℃

0.1-8℃

Gradient Temp. Range

30-105℃

Gradient Type

Nolinear Gradient

Dynamic Gradient

Two-Dimensional Gradient

Gradient Spread

1-42℃

six zone,each zone is 0.1-5℃.

Horizontal:1-30℃

Vertical:1-24℃

Hot Lid Temperature

30-115℃

Number of Programs

20000 +(USB FLASH)

Max. No. of Step

30

40

Max. No. of Cycle

100

Time Increment/Decrement

1 Sec - 600 Sec

Temp. Increment/Decrement

0.1-10.0℃

Pause Function

Yes

Auto Data Protection

Yes

Hold at 4℃

Forever

Touchdown Function

Yes

Long PCR Function

Yes

Language

English

Computer Software

Yes

Mobile phone APP

Yes

LCD

10.1 inch,1024×600 pels

Communication

USB2.0 , WIFI

Dimensions

385mm× 270mm× 255mm (L×W×H)

Weight

10kg

10kg

17kg

Power Supply

100-240VAC ,

50/60Hz , 600 W

100-240VAC ,

50/60Hz , 600 W

100-240VAC ,

50/60Hz , 1200 W
